Setup your Microsoft Teams environment

This guide does not explain how to setup Microsoft Teams.  The assumption is that you already have a Teams environment with Microsoft, your own domain(s) and users setup and this guide is focussed purely on how to connect your Account  with that environment to provide incoming and outgoing calls to the PSTN along with providing phone numbers to your end users.

If you would like some guides on getting Microsoft Teams setup for your business then follow the useful links below:

https://docs.microsoft.com/en-us/MicrosoftTeams/teams-overview

https://support.office.com/en-us/teams

Useful Guide for Installation of the Teams Environment

https://social.technet.microsoft.com/wiki/contents/articles/52052.microsoft-teams-administration-powershell-admin-center.aspx

Microsoft Licenses Required for Phone System Integration

 To enable Phone services for Microsoft Teams you need to have a 'phone system license' for each of your users that wish to have this functionality.  Here is a useful guide to licensing:

https://docs.microsoft.com/en-us/microsoftteams/teams-add-on-licensing/microsoft-teams-add-on-licensing

In the Enterprise space, you can add either an E1, E3, or E5 license for a user and this will give you the functionality you need to enable phone services for that user.  You also need to add a phone system license 'Add-on' to give you this functionality if this is available on your current Office 365 licensing.

Microsoft have now updated their licensing so that any user that has Teams included in their license can purchase a Phone System Standard license to enable phone services.

Step by Step Example Guide

Every customer is different when it comes to Teams Integration so there is no 'one guide suits all' for getting setup with Teams.  However, we decided to put together a step by step guide for a 'vanilla' customer who is new to Teams and looking to signup to Teams with 3 users and then map 3 phone lines to those users.  The guide below is a record of that process with detailed screenshots and could be useful for system integrators to see the steps involved in a 'new' install.

Domain Verification and Trunk Setup

Assuming you already have your own domain setup with Microsoft you now need to setup our Teams SBC domain and get this verified.  If you have not set up any domain yet with Microsoft for your organisation then please see our-by-step guide for this above.

First you need to login to  login to the Microsoft Admin Center using your Microsoft Login:

https://admin.microsoft.com/AdminPortal/Home#/Domains Then click on 'Show All' and then 'Settings' and the Domains sub-menu option.

If you need still need to setup an account in your white label portal using the Add Customer page.

Log into your customer's portal click on the Voice tab and then select 'Profiles' from the left side menu.

If you want to setup all lines on your account to use Microsoft Teams use the default profile otherwise you can create a new profile at the bottom of the page. In the drop down menu for Connection type select 'Microsoft Teams'.

Copy the Microsoft Teams Domain into your clipboard (it will be something like ms81xxxxxx.sbc.msteams.nz)

In the Domains page back in the Admin Center (under Settings/Domains) click 'Add domain'

Enter the Teams Domain you copied into your clipboard into the domain text box and click Next

Wait for the Verify Domain page to load (this can take some time and you may need to refresh the page)

The Verify domain page should now be displayed

Copy the TXT value by clicking the icon beside the TXT value information (e.g. MS=msxxxxxxxx)

Now switch back to the customer portal page and paste this value into the Domain TXT record value field and then press 'Save Default Profile'

Now switch back to the Admin Center page and click on 'Verify'

You may need to wait 1 minute or retry if this fails. Be patient!  Once verified make sure all the options for online services are NOT ticked and click Next.

All being well this should complete and your trunking domain will be added to your account.

Now switch to the 'Users' tab in the Admin Center and click 'Add a user'

We are going to create a 'temporary user' to associate with the trunk domain

The user details should be something like 'VOIP Trunk' and username of 'voiptrunk'. Make sure you select our new trunk domain from the drop down menu (e.g. msxxxxxxxx.sbc.msteams.nz). Then Click Next.

Now you need to assign a product license that includes phone services such as an E5 or E3 license to this user.  If you only don't have any more licenses available then you may need to 'borrow' one from one of your other users temporarily. We can assign it back later on once the trunk is setup.

Leave the Role and Profile Info as default and click Next

Press 'Finish Adding'

You should receive confirmation the Trunk user has been created.

Go back to your Active users in the Users tab in Admin Center and the Trunk User should be listed.

User Management

Now switch back to your customer portal tab and add any new numbers you want on teams. You can also port a number to Teams or change an existing line type to be a Teams line in the Account/Numbers page.

For adding a new Teams number ensure you select the Line Type as 'Microsoft Teams' and select a Teams plan for the line.

Continue to add Teams enabled numbers to your account as required.

Click on 'Voice' tab and your Teams users should be listed with a 'Teams icon' beside them.  If you do not see this icon check that you have set the Profile (in the Profiles Page) to be of the type 'Microsoft Teams' and if you have created a new profile for Teams then in the numbers page make sure you assign that profile to the Teams lines.

Now click on the 'Teams' page on the left menu

Fill in the fields against each teams number including the teams user IDs hosted in Office 365 (including the domain name e.g. lex.d@techconnections.nz). You can also decide if you want to twin with a regular SIP phone or have the call failover to SIP or be hosted on Teams only. You can also decide if you want to use the Teams Voicemail system or the voicemail and provide an 'offline forwarding number' for your users in case calls fail to Teams and you need to have a backup number for these users (e.g. their mobile phone number). Press 'Save Changes' when done.

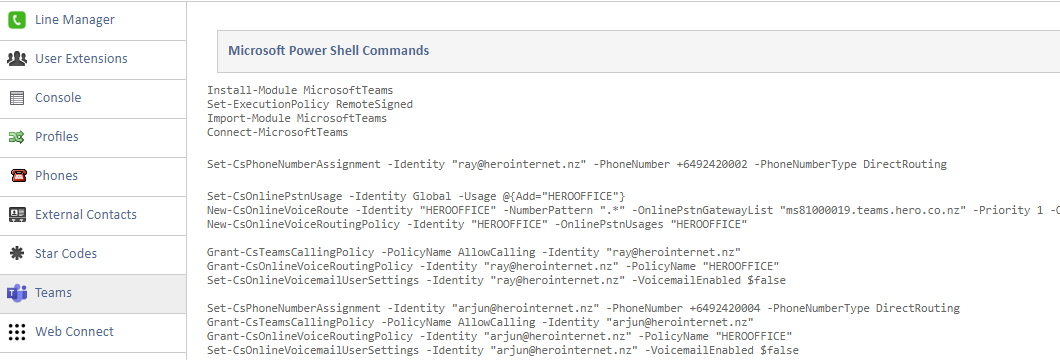

The following steps are for advanced users only who understand how to use the Microsoft Power Shell. Click on 'Power Shell' to display a list of commands you need to enter.

The final stages require a good technical knowledge of Microsoft's Admin Center and Power Shell command line to complete the integration.  You will likely need an authorized Microsoft Office 365 Reseller to complete the final steps.

Power Shell Setup and Commands

Once your Power Shell environment is ready you will need to do the following:

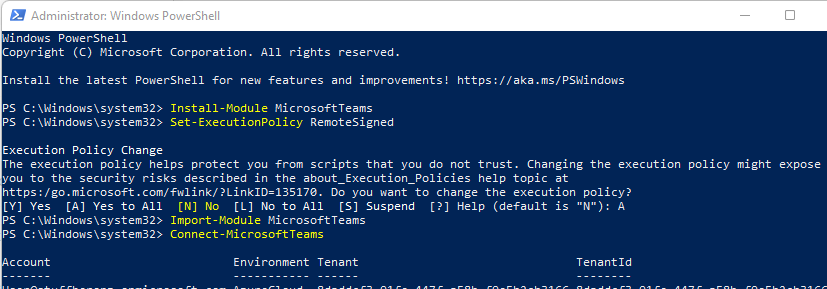

1. Start Power Shell as Administrator (or with Administrator Privileges)
2. Run the following commands in Power Shell:

Install-Module MicrosoftTeams
Set-ExecutionPolicy RemoteSigned
Import-Module MicrosoftTeams
Connect-MicrosoftTeams

1. Enter Global Admin username and password.
2. Untrusted Repository. Confirm by pressing 'A'

We now need to map your phone number(s) to your Microsoft Teams users.

1. For Each Domain (Tenant) in Teams

Run the following power shell commands for each of your tenants in Microsoft Teams.  The example below the example domain is "ms81012345.sbc.msteams.nz" (replace this with your own domain) and we have named the Voice Identity as 'VOIP'.  These commands are given to you in the Power Shell page in the customer portal so you should be able to just paste them in.
The first command you need to run is the Set-CsUser command and this adds the first user to the trunk (NOTE: this needs to be done BEFORE creating the Voice Route and Policy) and will look something like:


Set-CsPhoneNumberAssignment -Identity "lex.d@techconnections.nz" -PhoneNumber +6492420001 -PhoneNumberType DirectRouting

Next, paste the other tenant commands to set up the PSTN identity and Voice route details, and then assign the calling and voice routing policy to your first user. This should look something like this:

Set-CsOnlinePstnUsage -Identity Global -Usage @{Add="VOIP"}
New-CsOnlineVoiceRoute -Identity "VOIP" -NumberPattern ".*" -OnlinePstnGatewayList "msxxxxxxxx.sbc.msteams.nz" -Priority 1 -OnlinePstnUsages "VOIP"
New-CsOnlineVoiceRoutingPolicy -Identity "VOIP" -OnlinePstnUsages "VOIP"

Once the routing policy and voice route have been created then you can assign these to your user using commands similar to those below:

Grant-CsTeamsCallingPolicy -PolicyName AllowCalling -Identity "lex.d@techconnections.nz"
Grant-CsOnlineVoiceRoutingPolicy -Identity "lex.d@techconnections.nz" -PolicyName "VOIP"
Set-CsOnlineVoicemailUserSettings -Identity "lex.d@techconnections.nz" -VoicemailEnabled $false

3. For Each of your Users

If you have more than a single user then you will need to now map a phone number to each of your Teams users using the following commands.  The example below assumes that our example user Lex.d@techconnections.nz is going to be assigned the phone number 092420001 (added to Microsoft with the full country code format as +6492420001) and we are still using the Identity of "VOIP".  Replace these as required for your own circumstances.

Set-CsPhoneNumberAssignment -Identity "lex.d@techconnections.nz" -PhoneNumber +6492420001 -PhoneNumberType DirectRouting
Grant-CsTeamsCallingPolicy -PolicyName AllowCalling -Identity "lex.d@techconnections.nz"
Grant-CsOnlineVoiceRoutingPolicy -Identity "lex.d@techconnections.nz" -PolicyName "VOIP"
Set-CsOnlineVoicemailUserSettings -Identity "lex.d@techconnections.nz" -VoicemailEnabled $false

Moving From Skype for Business to Microsoft Teams

If your company is currently using Skype for Business, you have to upgrade to Teams and enable the Phone System feature. This process requires a bit of prior planning, so check out the Microsoft articles for more information.

If you are using Skype for Business, this will help you:

FAQ:

https://docs.microsoft.com/en-us/microsoftteams/faq-journey

Getting started:

https://docs.microsoft.com/en-us/microsoftteams/upgrade-start-here

Deployment and implementation:

https://docs.microsoft.com/en-us/microsoftteams/upgrade-to-teams-execute-skypeforbusinessonline

If you have any questions or technical problems, get in touch with our support team
